ZENER_DIODE_TEST_SET

Published:2009/6/17 22:30:00 Author:May | From:SeekIC

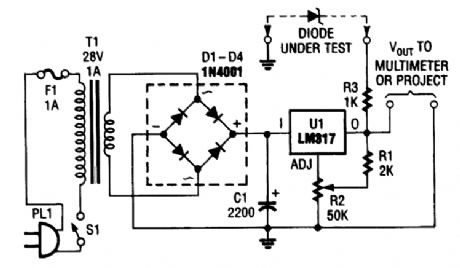

This versatile circuit can be used to test zener diodes or act as a stand-alone power supply. It re-quires a voltmeter to work as a zener tester.
