WIDE BAND ZERO CROSS DETECTOR

Published:2012/9/4 20:18:00 Author:Ecco | Keyword: WIDE BAND , ZERO , CROSS , DETECTOR | From:SeekIC

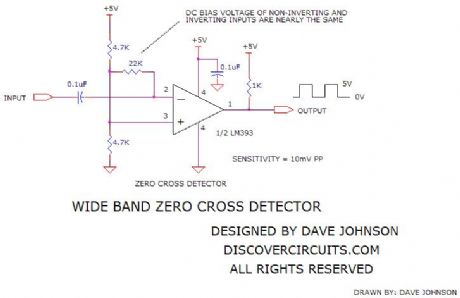

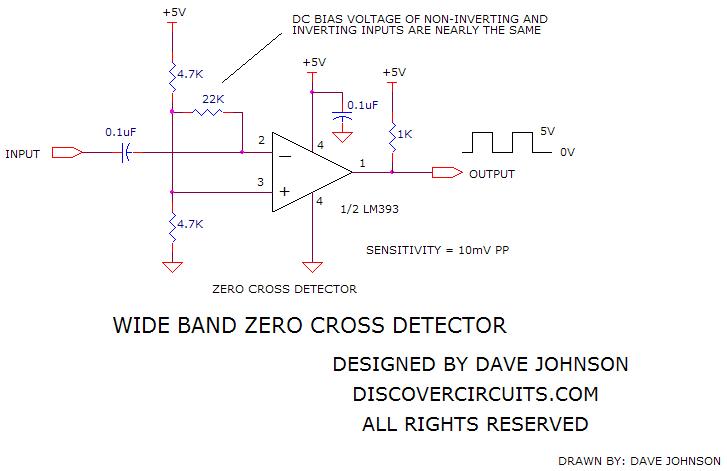

This circuit was designed to convert a low amplitude 40KHz signal into a clean square wave signal. It will work with inputs as small as 5mv peak-to-peak or as large as 3 volts peak to peak. The input frequency can range from a few kilohertz to about 150KHz. Source: discovercircuits
