WIDE_BAND_AC_VOLTMETER

Published:2009/7/2 21:05:00 Author:May | From:SeekIC

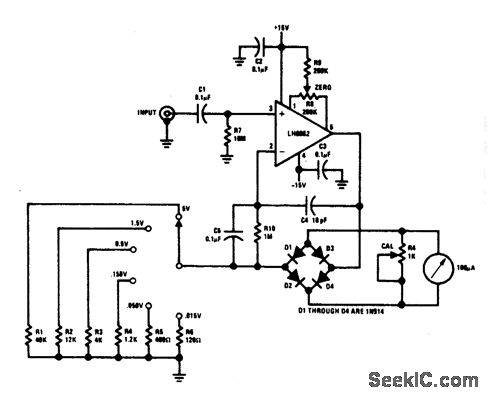

This voltmeter is capable of measuring ac signals as low as 15 mV at frequencies from 100 Hz to 500 kHz. Full scale sensitivity may be changed by altering the values R1 through R6 (R=VIN/100 μA).
