WHEATSTONE_RESISTANCE_BRIDGE

Published:2009/7/16 2:32:00 Author:Jessie | From:SeekIC

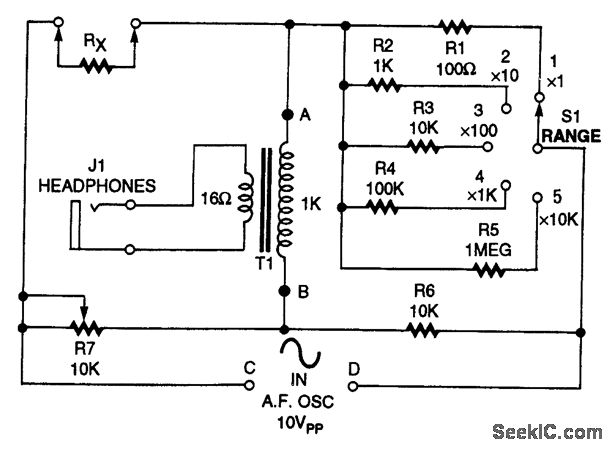

R7 is a calibrated potentiometer. At null, RX equal Rn(R7/R6),where Rn=R1,R2,R3,R4,or R5,as selected by switch S1.
