VOLTAGE_DIVIDER

Published:2009/7/16 20:19:00 Author:Jessie | From:SeekIC

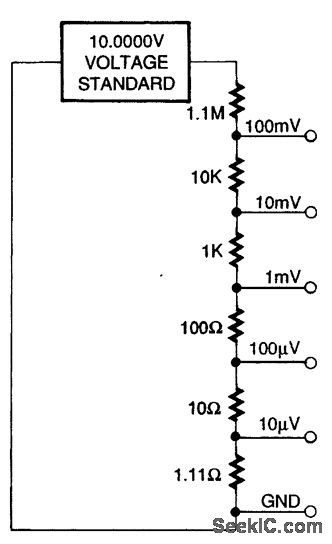

This divider will produce low dc voltages from a 10-V supply. The resistor values can be scaled proportionally for other requirements.
