VARIABLE_TIMING_RING_COUNTER

Published:2009/7/14 2:01:00 Author:May | From:SeekIC

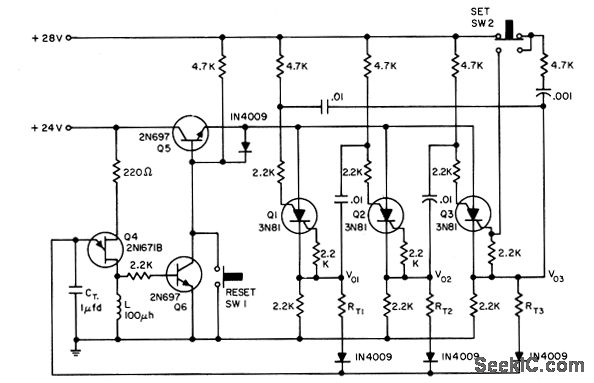

Shift pulses are generated by unijunction transistors, with interval between pulses deter. mined by CT and RT. RT can have different value for each stage of Gaunter, as shown.- Transistor Manual, Seventh Edition, General Electric Co. 1964, p 430.
