UNDERVOLTAGE_DETECTOR

Published:2009/7/10 3:29:00 Author:May | From:SeekIC

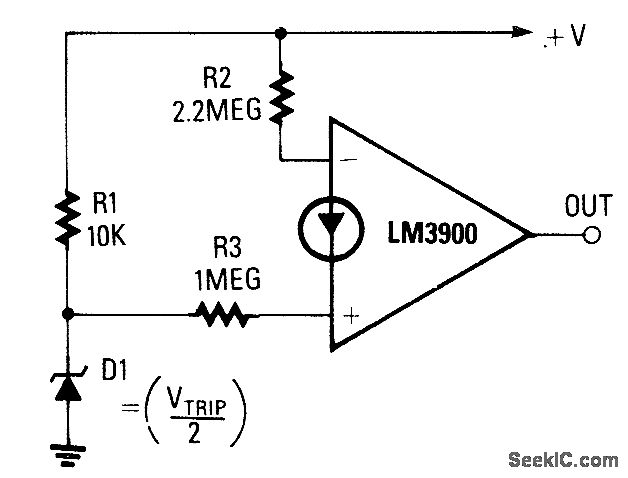

The output goes high when the supply falls below a value determined by zener diode D1. If D1 is a 5.6-V zener, the op amp will switch high when the supply voltage falls below approximately 11 V. The precise trip point can be varied by replacing R3 with an 820-kΩ resistor in series with a 470-k0 potentiometer.
