The oil pump relay circuit of Daewoo-ESPERO

Published:2011/5/18 21:03:00 Author:Borg | Keyword: oil pump relay, Daewoo-ESPERO | From:SeekIC

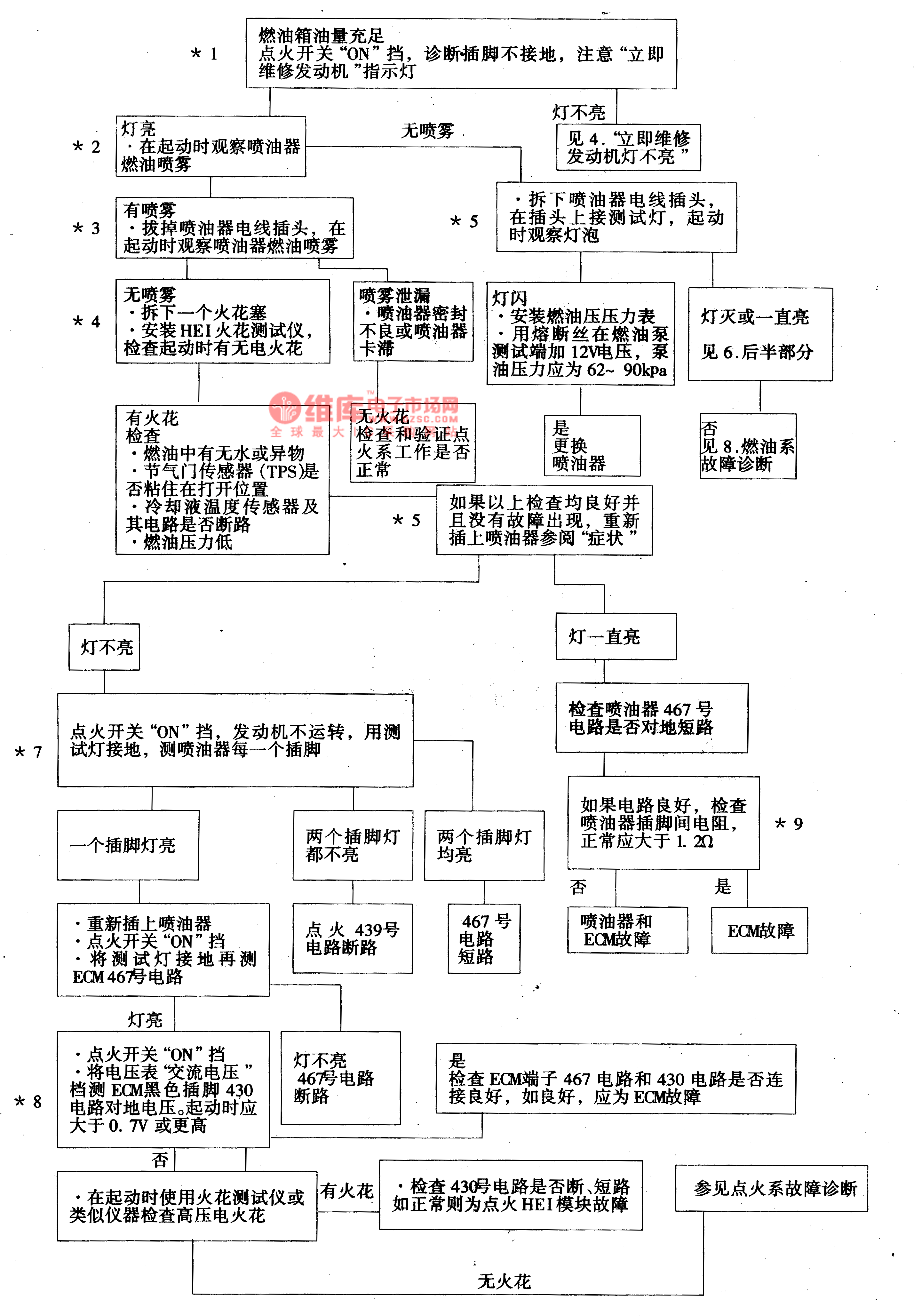

6.The diagnosis on the fault of rotating engine without runningThe so-called rotating engine without running means that the engine can rotate driven by the stater but can not automatically run. Before we judge the fault, we should make sure the battery has enough power, and the stating speed of the engine is normal, there is enough oil in the box. The circuit is shown in Figure 13, and the diagnosis course marks of * are introduced as follows.*1 the lighting of repair the engine immediately indicator means the power supply voltage and igniting voltage of 5V have been transmitted to ECM.
