The illuminance tester circuit

Published:2011/6/6 1:32:00 Author:Seven | Keyword: illuminance tester | From:SeekIC

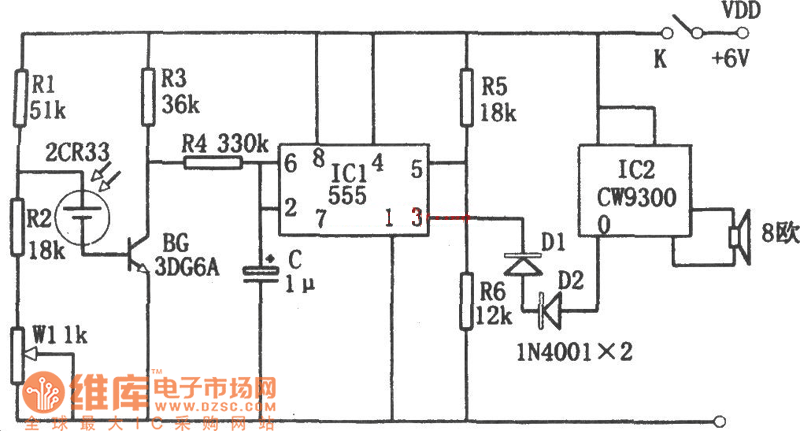

In the figure is an illuminance tester circuit. The tester consists of the photoelectric sensor, single steady trigger, stereo circuit, etc, of which the photoelectric sensor is powered by battery 2CR33.
