The digital capacitor tester

Published:2011/6/6 1:26:00 Author:Seven | Keyword: capacitor tester | From:SeekIC

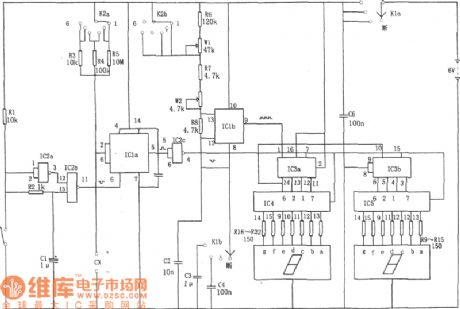

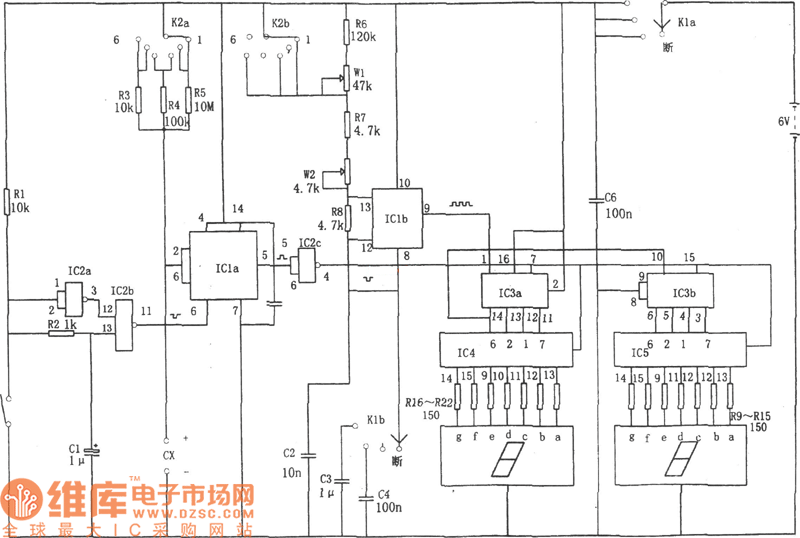

In the figure is the digital capacitor tester. The tester consists of the time-based pulse generator, single steady trigger, addition counter, decoder, driver and LED digital pipe, etc.
