The absolute value detection circuit

Published:2011/6/15 2:43:00 Author:Borg | Keyword: absolute value, detection | From:SeekIC

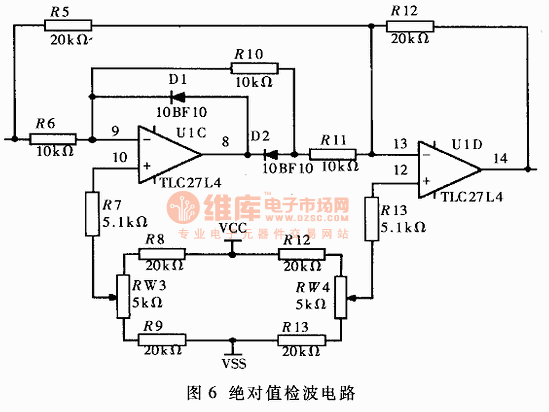

By the absolute value detection circuit (see as figure 6), we can settle the absolute values of the communication signals, which is convenient for the indication of the acceleration value. when the input signal Vin>0, the output signal Vout=Vin; but when Vin<0, Vout=-Vin. Figure 6. The absolute value detection circuit
