Testing high, low frequency transistor circuit diagram

Published:2011/8/1 22:05:00 Author:Ecco | Keyword: Testing circuit, high frequency transistor , low frequency transistor | From:SeekIC

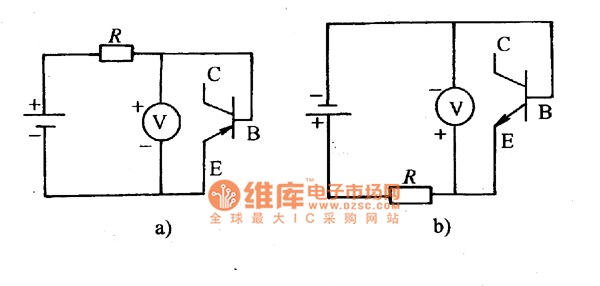

Method: PNP transistor is connected according to the figure a; NPN transistor is connected according to the figure b. In the figure, R is 2OkΩ limiting resistor, and power supply voltage E is l2V, V is the multimeter voltage and current files (it should be allocated the file with slightly larger than l2V).
