TWO_TRANSISTOR_CARDIAC_PACEMAKER

Published:2009/7/20 20:33:00 Author:Jessie | From:SeekIC

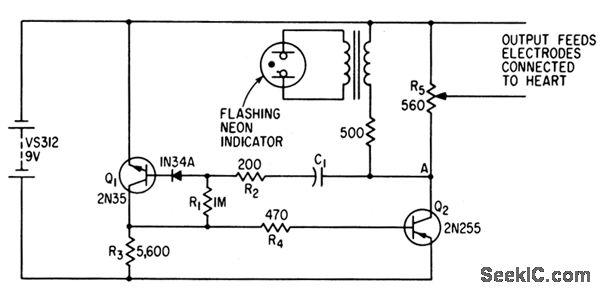

Produces triggering pulses that stimulate heartbeats during surgery. Repetition rate is determined by C1 and R1. Pulse duration is 4 millisec, with 8-V peak that sends 16 ma through 500-ohm load.-W. E. Gilson and H. F. Klinge, Cardiac Pacemaker Triggers Heartbeats, Electronics, 34;40, p 80.
