TWO_FUNCTION_CONTROLLER

Published:2009/7/12 22:32:00 Author:May | From:SeekIC

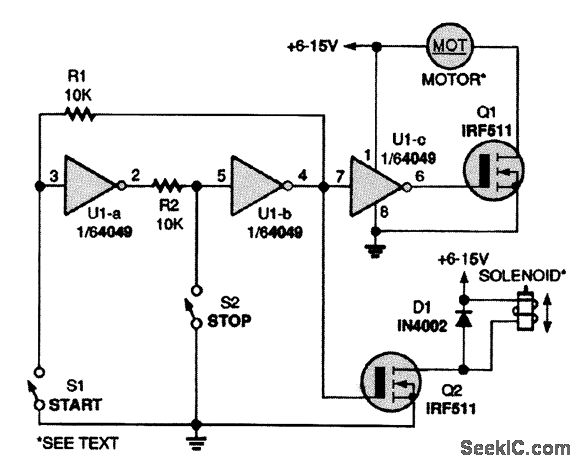

This two-function controller operates a motor when started, then energizes a solenoid, relay,etc., when stopped.
