TONE_BURST_OSCILLATOR_AND_DECODER

Published:2009/7/2 21:37:00 Author:May | From:SeekIC

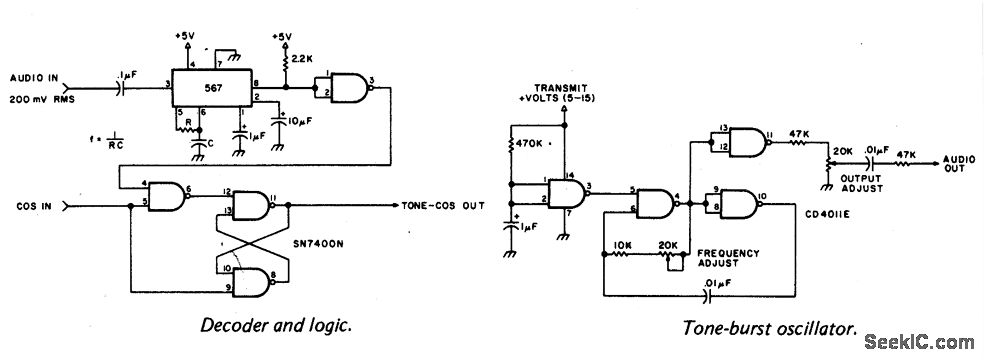

A tone burst sent at the beginning of each transmission is decoded (at receiver) by a PLL causing output from pin 3 of logic gate to turn on carrier-operated switch (COS).
