TESTS_DRIVER_FOR_HOBBY_SERVOS

Published:2009/6/18 4:32:00 Author:May | From:SeekIC

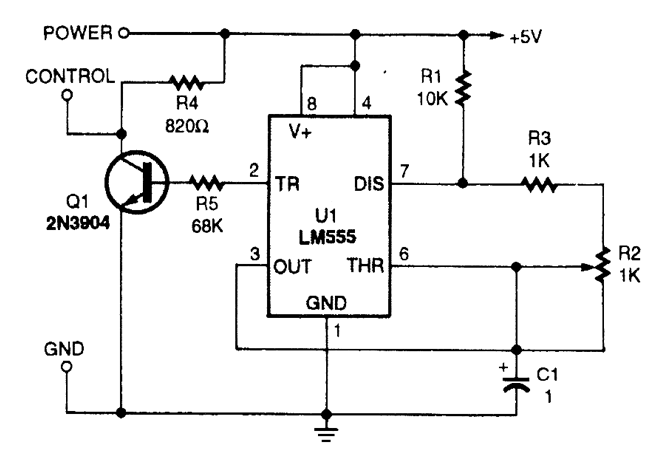

This circuit will generate the pulse used to control hobby servos. With the components shown the servo should produce a 90° total rotation.
