Straight-Flow Capacitance Tester Circuit Diagram

Published:2011/6/16 10:56:00 Author:Vicky | Keyword: Straight-Flow Capacitance Tester | From:SeekIC

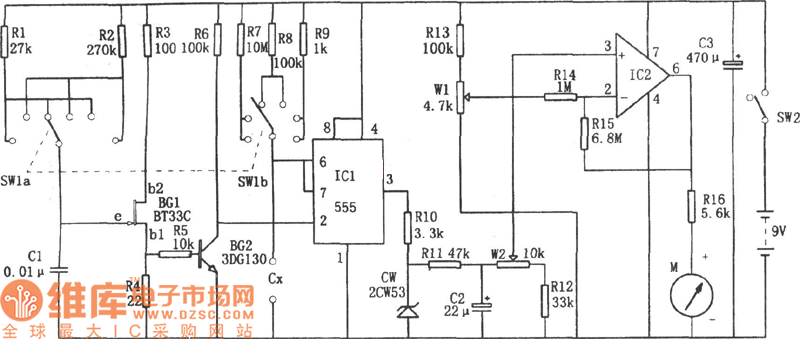

The above picture is a straight-flow capacitance tester. The test is composed of pulse generator, monostable trigger, DC amplifier ( direct current amplifier) and head indicating circuit etc. It can test capacitance from npF to 10μF. The distance is from to 100PF, from 0 to 1nF, from o to 10nF, from 0 to 100nF,from 0 to 1μF, and from 0 to 10μF.
