Solar PV cell Test Fixture

Published:2012/9/5 20:45:00 Author:Ecco | Keyword: Solar, PV cell, Test Fixture | From:SeekIC

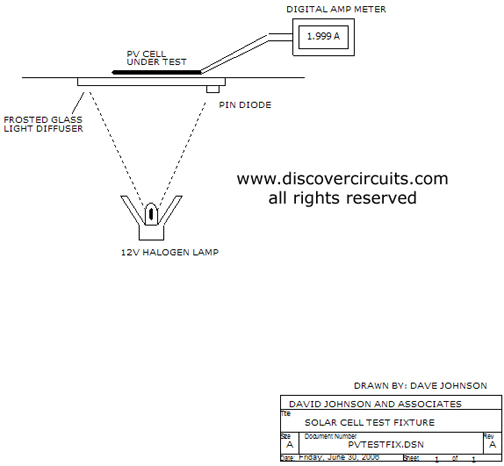

This is an illustration of a test fixture, which can be used to test individual solar cells for short circuit current. Using a PIN photo diode and a control circuit, the solar cells can be tested under constant light level conditions. A halogen incandescent lamp is used as the light source Source: discovercircuits
