Small General Purpose Audio Test Set

Published:2012/12/4 23:52:00 Author:muriel | Keyword: Small General Purpose, Audio Test Set | From:SeekIC

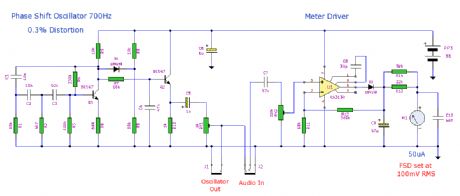

This is a small general purpose audio test set. It comprises a low 0.3% distortion phase shift oscillator and a level meter. The level meter is set at 100mV FSD and can be used for gain measurements and general testing. Current consumption is just under 4mA.
