STEADY_TONE_INFRARED_TRANSMITTER

Published:2009/6/19 4:14:00 Author:May | From:SeekIC

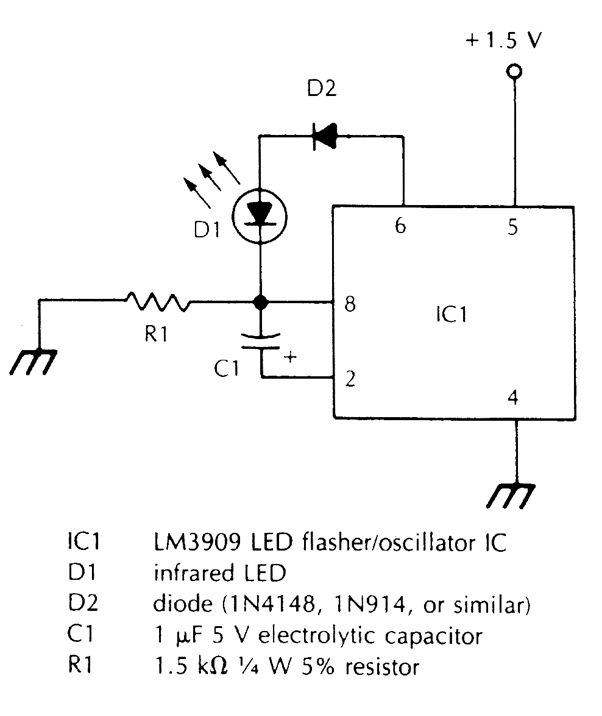

This oscillator pulses an IR LED at about 1000 Hz. It should be useful as a test for lining up IR communications links or setting up fiber-optic cables, etc.
