SIMPLE_HIGH_CURRENT_MEASURER

Published:2009/6/19 4:35:00 Author:May | From:SeekIC

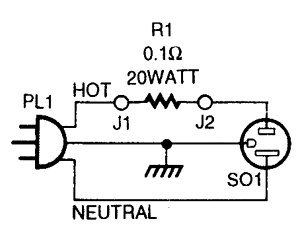

Testing heavy-load devices with a ten-amp maximum meter can be accomplished with this straightforward meter add-on. If done right, it could be made from a high-current extension cord. J1 and J2 are well-insulated jacks to accept meter probe tips.
