SIMPLE_FULL_WAVE_ENVELOPE_DETECTOR

Published:2009/6/15 22:26:00 Author:May | From:SeekIC

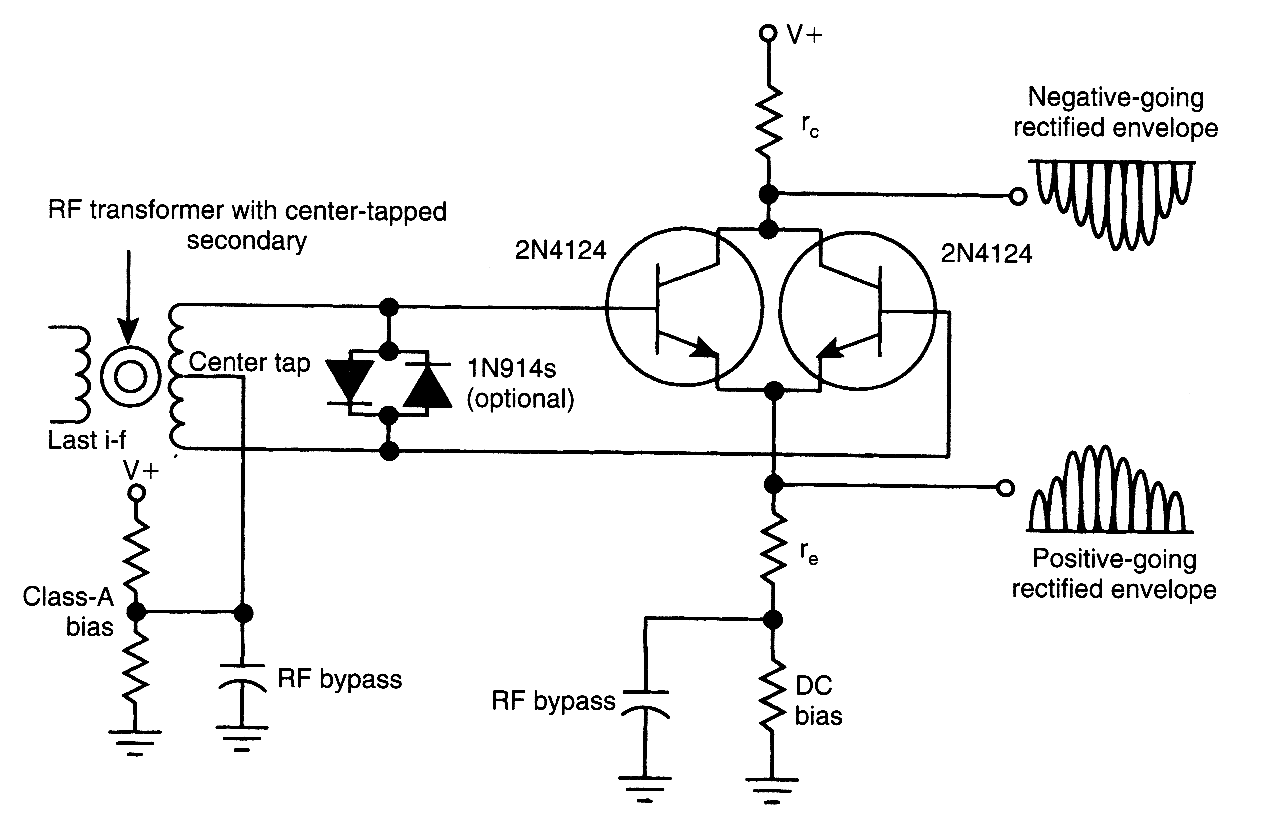

Simple, yet sensitive, this amplifying full-wave detector circuit has an almost zero rectification threshold. It presents a highly linear RF load to the final IF stage. The gain for the collector output is given (approximately) by rc/re, The emitter output gain is slightly less than unity.
