SIMPLE_FIELD_STRENGTH_METER

Published:2009/6/29 2:29:00 Author:May | From:SeekIC

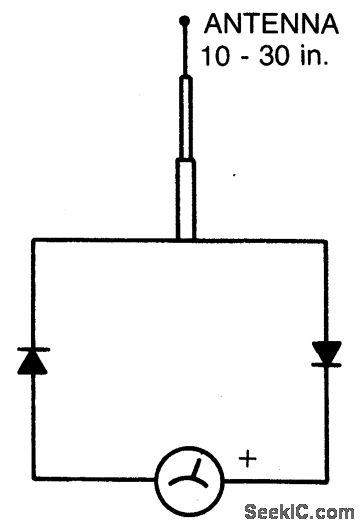

Circuit Notes The circuit is frequency selective. It has been used from 2 meters through 160 meters. The telescoping antenna may be adjusted to its shortest length when working at 2 meters to keep the needle on the scale. Meter should be a 100 microamp to a 500 microamp movement. The diodes are germanium type, such as 1N34, etc. Silicon diodes will also work, but they are a bit less sensitive.
