SIMPLE_AUDIO_CLIPPER_LIMITER

Published:2009/7/9 23:37:00 Author:May | From:SeekIC

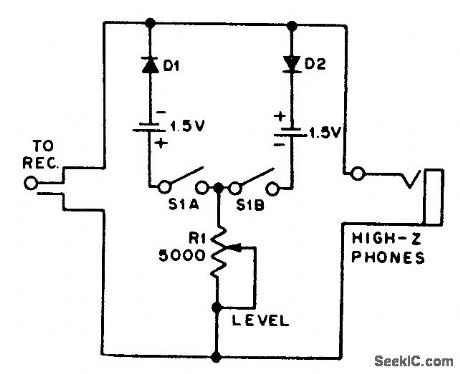

For use with headphones, this circuit sets the audio clipping level via a 5-KΩ pot. This type of noise clipper works best for pulse-type noise of low duty cycle, such as ignition noise. R1 sets the bias on the diodes for the desired limiting level.
