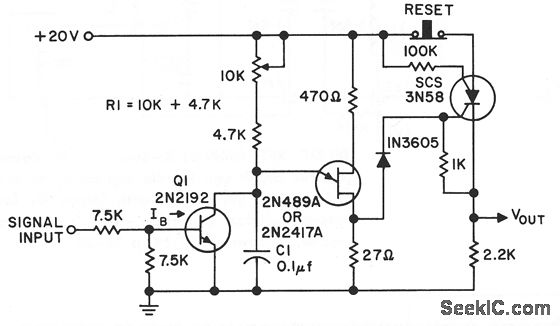

SIGNAL_DROPOUT_DETECTOR

Published:2009/7/10 1:28:00 Author:May | From:SeekIC

Used to Provide indiration of momentary dropout of d-c,a-c,or pulse input signal.lime between disappear of signal and indication of fault is adiustable. Outpul signal remains until scs is tumed off by momentarily opening reset switch.- Transistor Manual, Seventh Edition, Genercd Electric Co., 1964, p 336.
