SCS_BINARY_COUNTER

Published:2009/7/14 1:48:00 Author:May | From:SeekIC

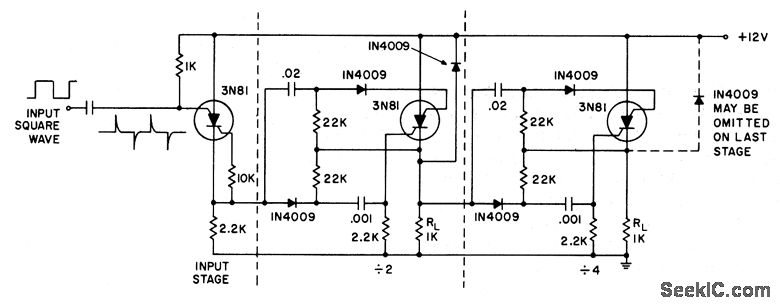

Stages are triggered by positive-going edge of input. Silicon con trolled switch is turned on at cathode gate, and turned off at anode gate.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 429.
