Reaction Capability Tester Circuit Diagram

Published:2011/6/9 4:00:00 Author:Vicky | Keyword: Reaction Capability Tester, CD4017 | From:SeekIC

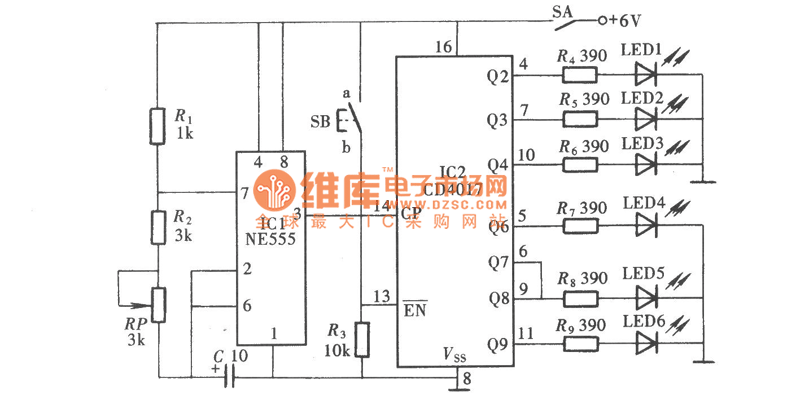

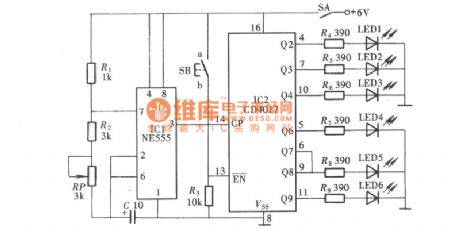

Reaction Capability Tester is used to test and train man’s quick-response capability. It has various type of construction and the Reaction Capability Tester as shown in the picture is composed of decimal counter CD4017 and luminous diode. The construction of Reaction Capability Tester is simple and can be used as a plaything to train and test children’s quick- response capability.
