RING_OF_7_COUNTER

Published:2009/7/13 23:48:00 Author:May | From:SeekIC

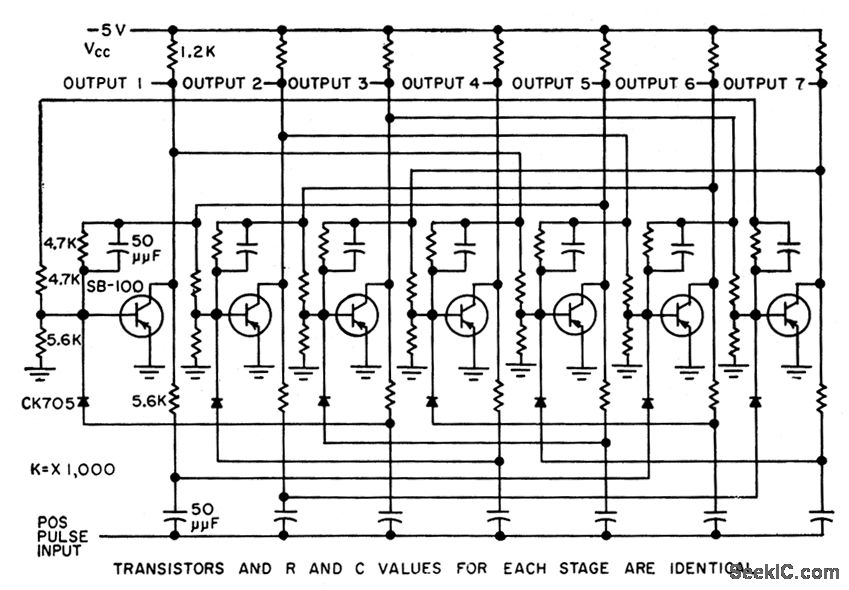

Uses surface-barrier transistors in arrangement wherein pattern of four on stages is stepped along ring, per mining maximum number of stages in ring lo be much higher than in conventional rings.-W. Carlson, Ring Counter has Increased Count Capacity, Electronis 31:15, p 89-91.
