REMOTE_CONTROL_TESTER

Published:2009/6/16 22:28:00 Author:May | From:SeekIC

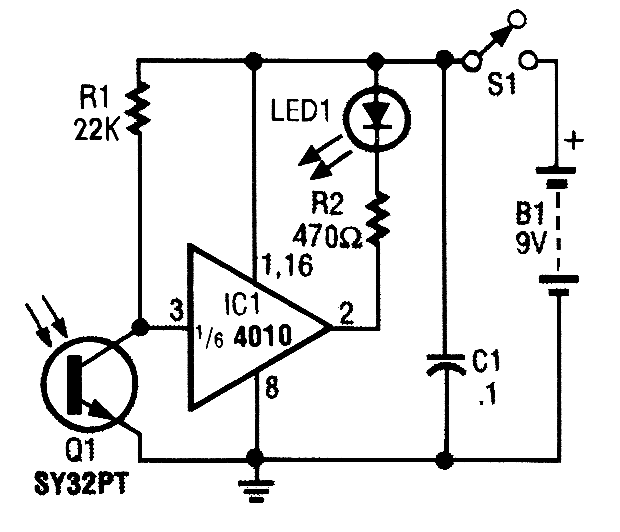

The IR Tester circuit lets you know if the but-ton you press on a remote control is working. Q1 is a photo transistor that is activated by IR energy.
