RADIATED_FIELD_METER

Published:2009/6/28 22:31:00 Author:May | From:SeekIC

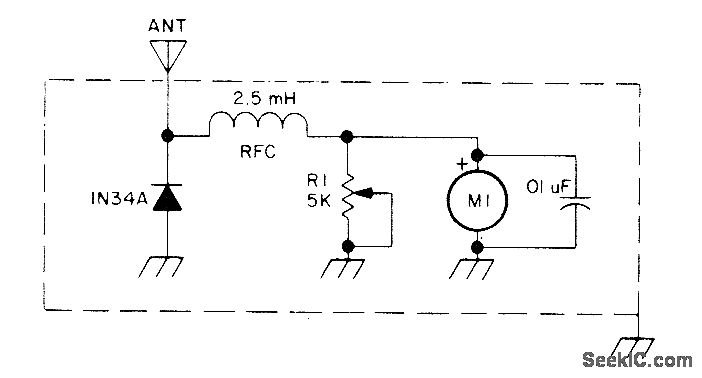

Gives quick check of overall transmitter performance, including antenna system. Meter can be 1 mA, but 0-200μA or 0-50μA will be more sensitive. The longer the reference antenna used, the greater will be the sensitivity of the meter. Keep lead lengths short. If measurements for various transmitter inputs are recorded when transmitter is work-hg properly, they can serve as guide for later troubleshooting.-E. Hartz, Is My Rig Working or Not?, 73Magazine, Oct. 1976, p 56-57.
