Proximity Detector (LM385) Diagram Circuit

Published:2011/6/26 18:56:00 Author:Vicky | Keyword: Proximity Detector | From:SeekIC

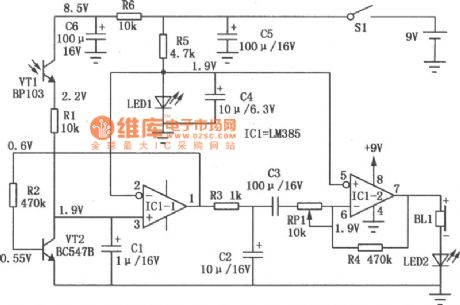

Proximity detector circuit is shown in the above picture. The circuit adopts ordinary phototube to detect the illumination changes when people enters alert zones, and thereby realize detecting function.
