Power Line Communication Transceiver Circuit

Published:2011/4/20 6:25:00 Author:TaoXi | Keyword: Power Line Communication, Transceiver Circuit, LM567 | From:SeekIC

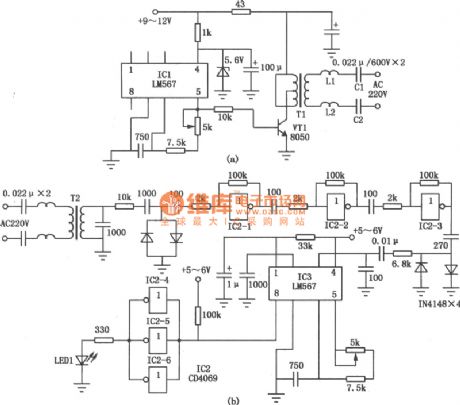

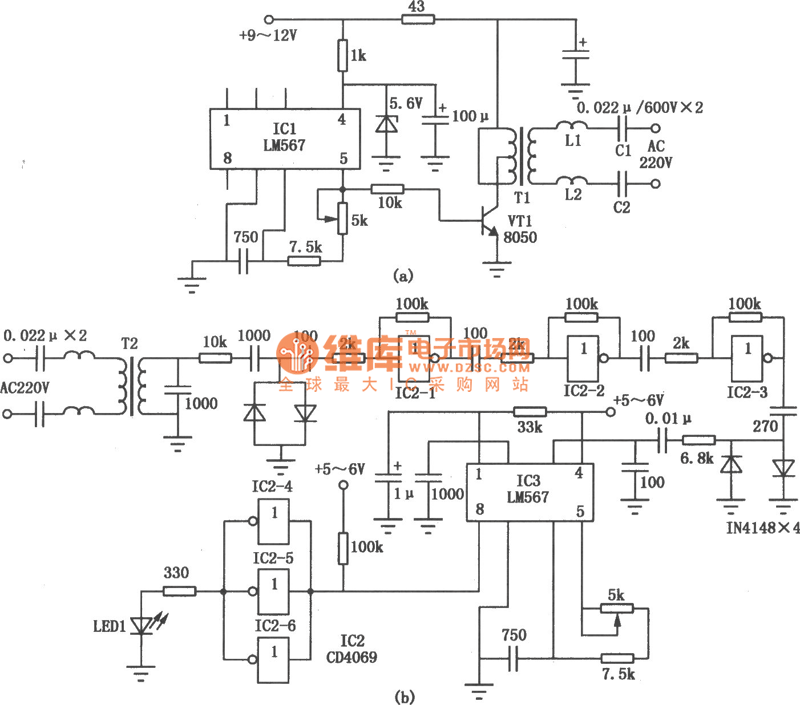

This electric circuit is the single-line power communication transceiver application circuit. It sends the analog and digital signals by 220V or 380V low-voltage power lines to complete wired communications. Figure (a) is the single-line power carrier transmission circuit, the core component IC1 is the audio PLL IC (LM567); Figure (b) is the single-line power carrier receiver circuit.
