PULSE_SEQUENCE_DETECTOR

Published:2009/7/16 23:32:00 Author:Jessie | From:SeekIC

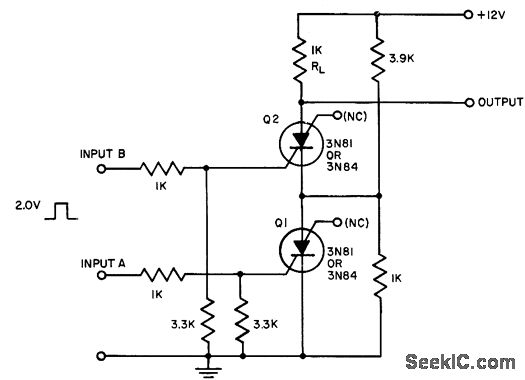

Resistor divider between Q1 and Q2 supplies current to silicon controlled switch Q1 after it is trig-gored by pulse at input A. Divider also pre vents input B from triggering Q2 until after Q1 conducts.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 428.
