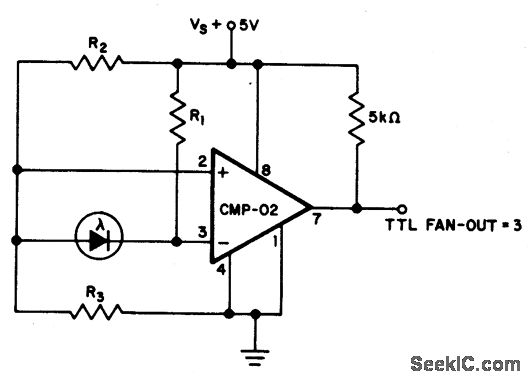

PRECISION_PHOTODIODE_LEVEL_DETECTOR

Published:2009/6/24 23:49:00 Author:May | From:SeekIC

For R1=2.5 M，R2＝R3=5 M．The output state changes at a photo diode current of 0.5μA
