POWER_FREQUENCY_METER

Published:2009/7/1 1:25:00 Author:May | From:SeekIC

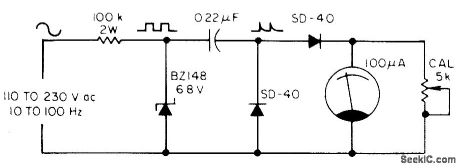

The meter uses a zener diode to form square waves from input she waves. After cal-ibration with the 5 k ohm potentiometer, the 100 μA meter reads directly in hertz.
