PEAK_TO_PEAK_VOLTMETER

Published:2009/7/15 2:23:00 Author:Jessie | From:SeekIC

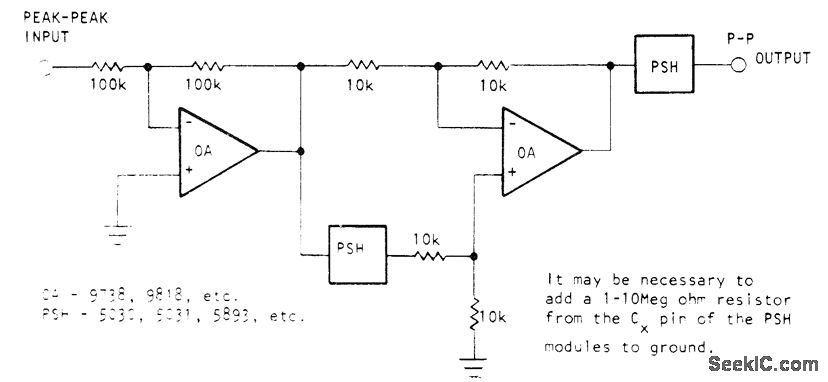

Two Optical Electronics opamps and two peak sense-andhold modules form positive-peak-sense memory that adds negative peak amplitude to entire signal so as to bias negative peak to zero. Input must be restricted to ±5 V full scale (10 V P-P). Output is 0 V for -5 V input and +10 V for +5 V input. Unsymmetrical signals such as +2 V to -8 V still give +10 V output.- Using Peak Sense Memories as Peak-to-Peak Detectors, Optical Electronics, Tucson, AZ, Application Tip 10275.
