PEAK_DETECTOR

Published:2009/7/1 20:57:00 Author:May | From:SeekIC

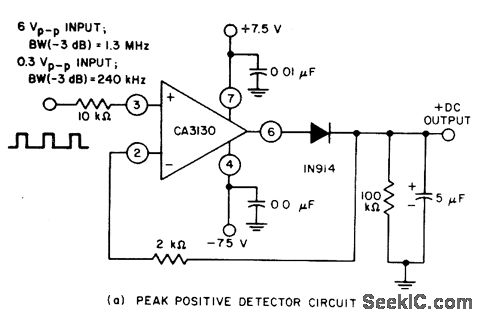

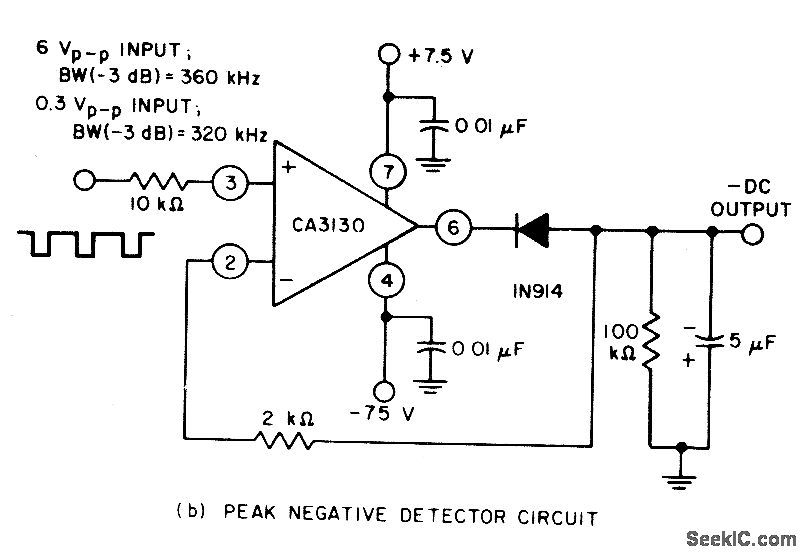

Circuits are easily implemented using the CA3130 BiMOS op amp. For large-signal inputs the bandwidth of the peak-negative circuit is less than that of the peak-positive circuit. The second stage of the CA3130 limits bandwidth in this case.
