PC Scope Probe

Published:2012/12/4 23:53:00 Author:muriel | Keyword: PC Scope Probe | From:SeekIC

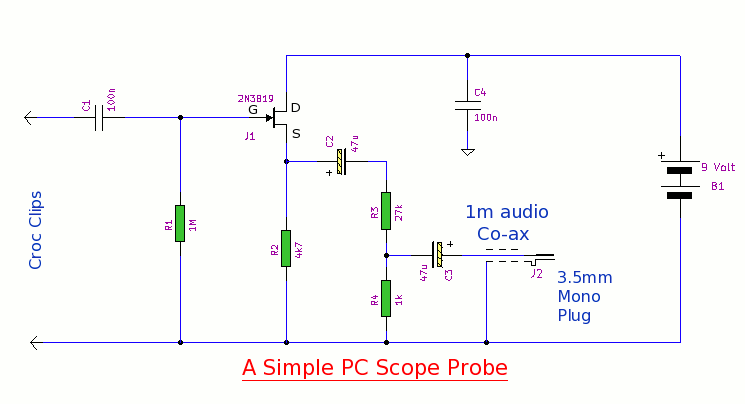

This simple pc scope probe is nothing more than a fet follower. It has a high input impedance and a low output impedance to match a mic or line input socket on a pc or laptop.
