Nanosecond pulse test circuit

Published:2011/5/12 22:25:00 Author:Nicole | Keyword: nanosecond pulse, test | From:SeekIC

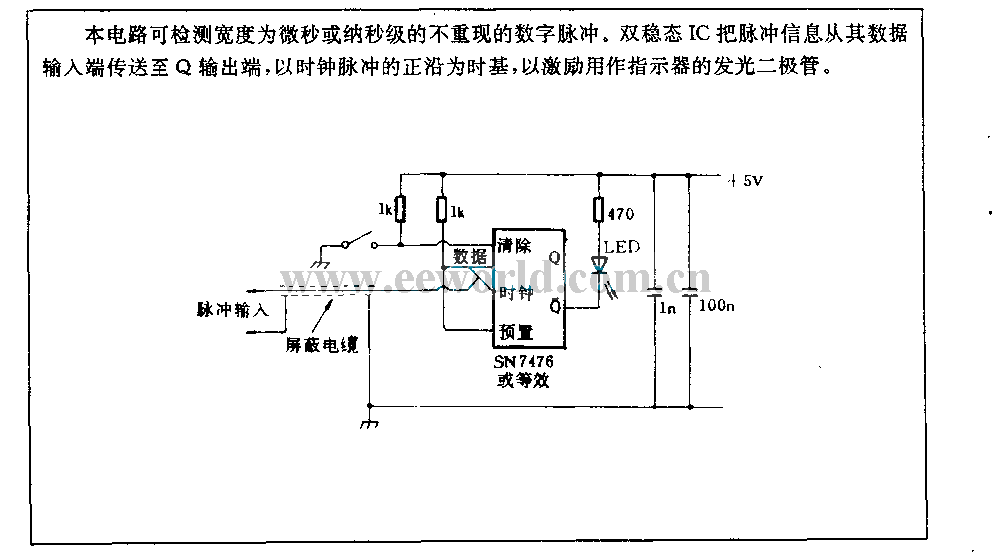

This circuit can test the digital pulse not repeated, and its width is microsecond or nanosecond. Bistable IC transmits pulse information from data input terminal to Q outout terminal, it uses the positive edge of clock pulse as time base, it is used to inspire LED which is used as indicator.
