NC Lathe detection circuit

Published:2011/5/13 3:45:00 Author:Nicole | Keyword: NC Lathe | From:SeekIC

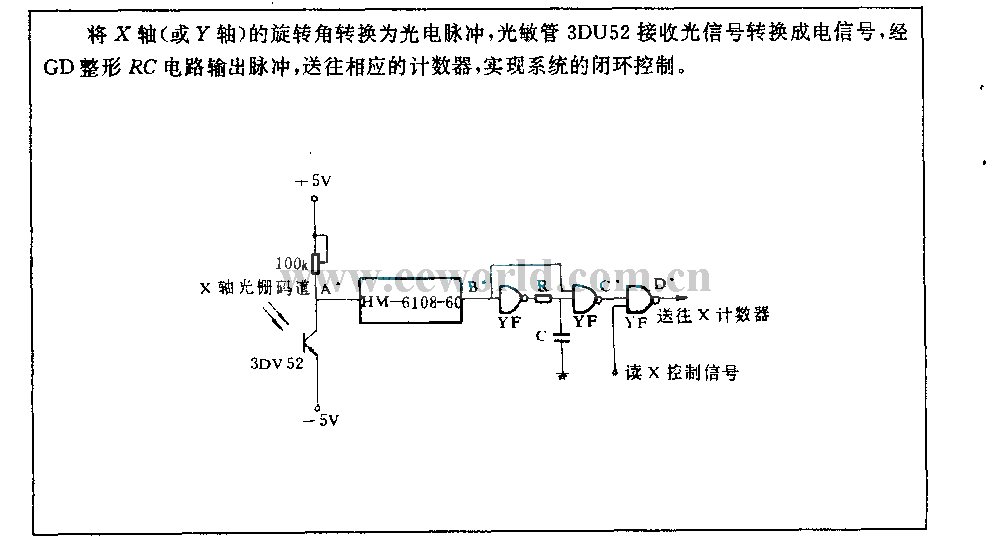

The rotation angle of X axis(or Y axis) is transformed into photoelectric pulse, photosensitive tube 3DU52 receives optical signal then change into electrical signal, RC circuit output pulse reshaped byGD , sending to the counter, to achieve the system closed loop control.
