NANOSECOND_PULSE_DETECTOR

Published:2009/7/1 22:31:00 Author:May | From:SeekIC

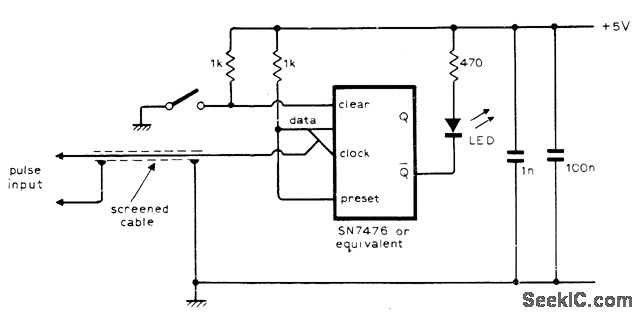

Used to provide visual indication of presence of a nonrepetitive digital pulse having microsecond or nanosecond width. Bistable IC transfers pulse information from its data input to the Q output on positive-going edge of clock pulse, to energize LED indicator.-P. V. Prior, Digital Pulse Detector, Wireless World, March 1976, p 90.
