Microcontroller test board circuit 1

Published:2011/4/26 3:41:00 Author:Ecco | Keyword: Microcontroller, test board | From:SeekIC

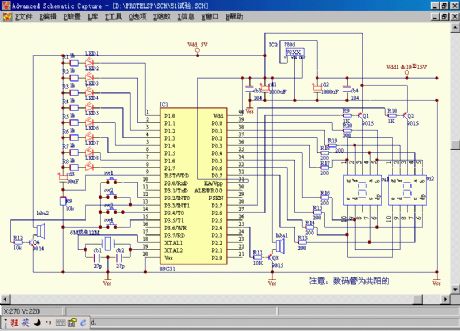

The drawing is a more general test board circuit and suitable for ordinary and stones, gold and many other parts of the Treasure experimental procedure. Anyway, it has strong compatibility, versatility and usability. It can be used in water light, digital control, keyboard control, voice music, oscillator, etc.
