MULTI_SCALE_COUNTER

Published:2009/7/14 1:50:00 Author:May | From:SeekIC

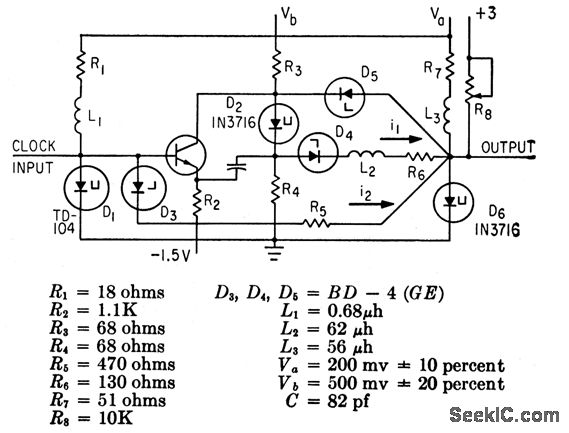

Changing value of L2 changes scale factor in range of 2 to 8. Circuit operates to 10 Mc at scale of 5.-C.A.Budde. One-Stage Scale Needs No Complex Feedback, Electroics.36:39,p32-33
