MODULATION_MONITOR

Published:2009/6/25 21:41:00 Author:Jessie | From:SeekIC

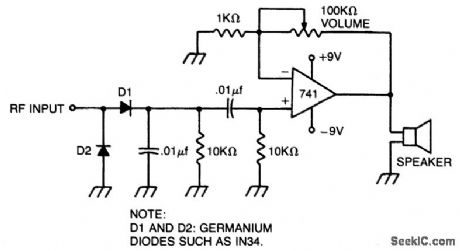

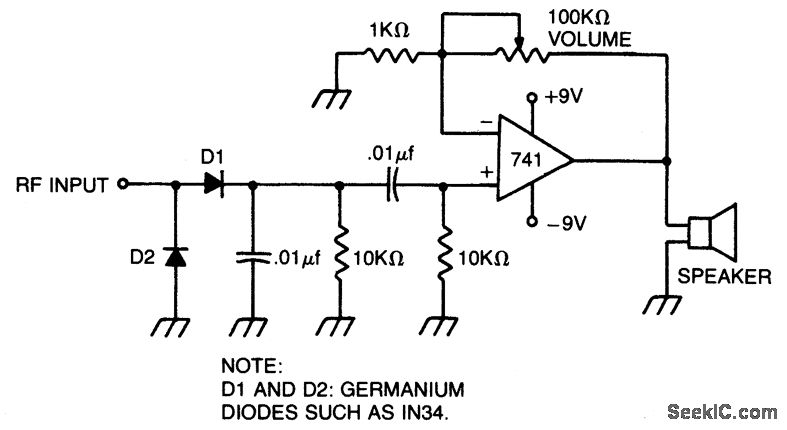

Broad-tuned recelver demodulates the RF signal picked up by a loosely coupled wire placed near the transmitting antenna．
