METER_INDICATOR_FOR_CRYSTAL_ACTIVITY_TESTER

Published:2009/7/12 23:50:00 Author:May | From:SeekIC

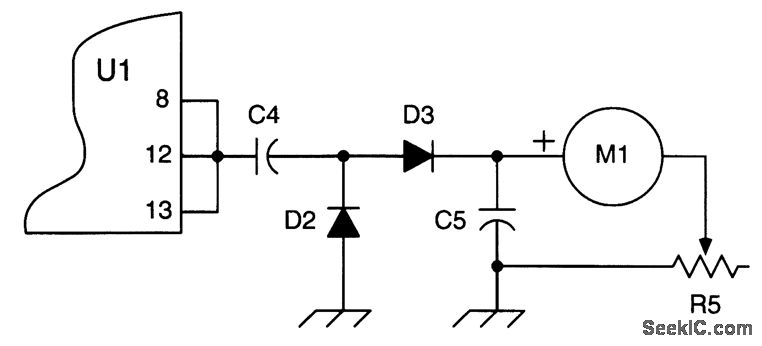

A meter can be added as shown, replacing the LED in the original circuit. The meter movement should be a 0- to 1-mA type.
