MERCURY_SWITCH_TILT_DETECTOR

Published:2009/6/17 21:50:00 Author:May | From:SeekIC

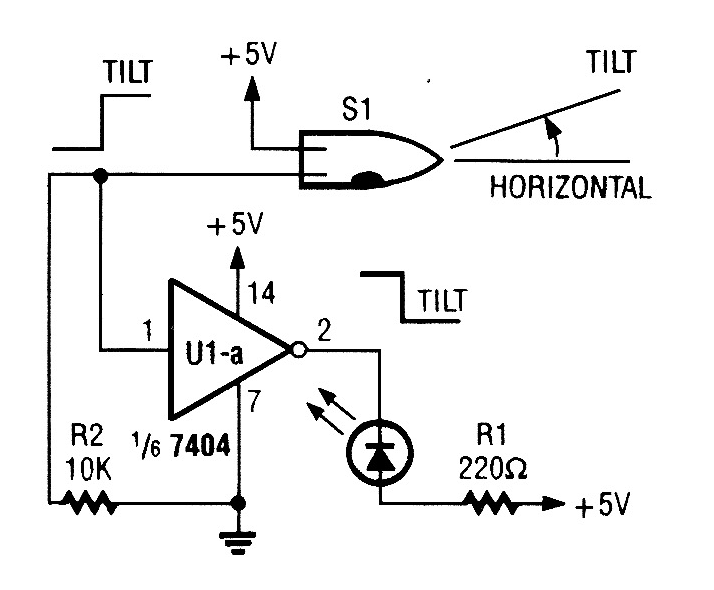

If the mercury bulb in this circuit is tipped,U1-a will light LED1 by going low, indicating a“tilted”condition.
