LOW_DRIFT_dc_VOLTMETER

Published:2009/6/17 21:47:00 Author:May | From:SeekIC

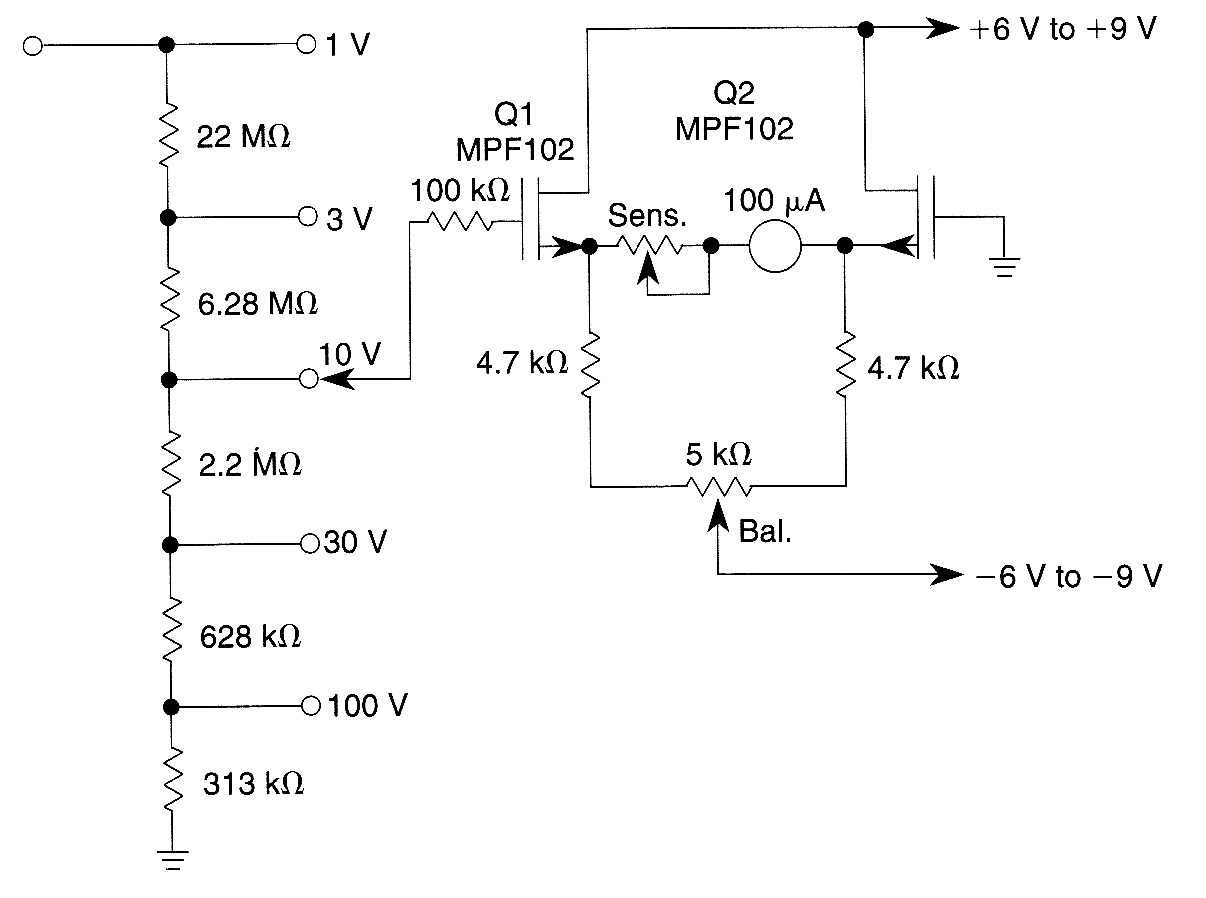

This voltrneter uses a pair of JFETs in a balanced-bridge source-follower amplifier circuit. Q1 and Q2 should be matched within 10% for IDSS This minimizes meter drift and maintains bridge balance over temperature.
