LINE_OPERATED_SMOKE_DETECTOR

Published:2009/7/10 3:38:00 Author:May | From:SeekIC

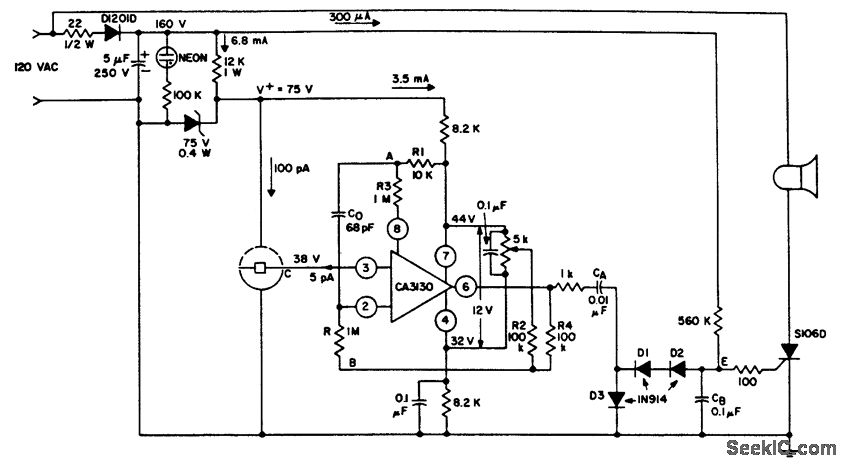

Using an ionization chamber anda high-impedance (CA3130) op amp, the presence of smoke will cause the CA3130 to stop oscillating, triggering S106D SCR, sounding the alarm.
