LINEAR_OHMS_MULTIMETER

Published:2009/7/20 20:36:00 Author:Jessie | From:SeekIC

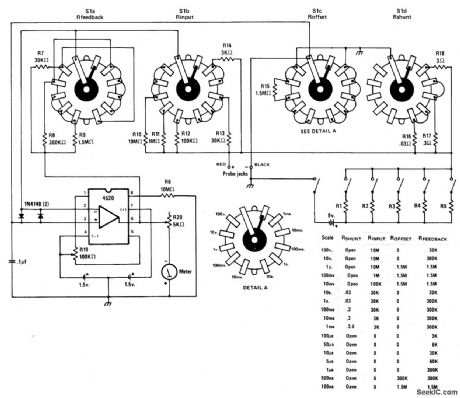

Full-scale value for each of five resistance ranges is determined by values used for R1-R5. Table gives values of resistors connected to each layer of three-gang 12-position selector switch to obtain five volt-age ranges and 12 current ranges for other multimeter functions. For dual multimeter, duplicate circuit for other section to permit measuring input and output signals simultaneously.-J. Sandier, ME's New Twin Electronic Multimeter, Modern Electronics, Oct.1978, p 58-61.
