INVERTED_VEE_ANTENNA

Published:2009/7/13 3:36:00 Author:May | From:SeekIC

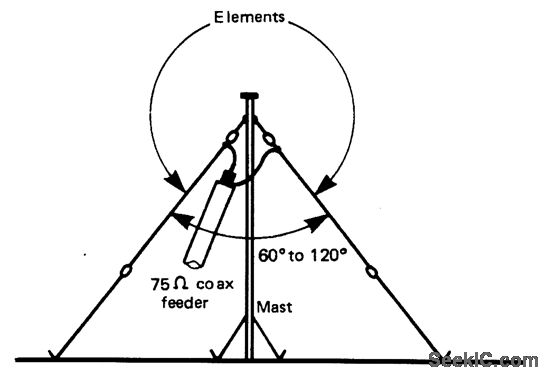

The inverted vee antenna is widely used by SWLs and radio amateurs. It has the advantage of needing only one support and can be fit into somewhat smaller spaces in some instances. A balurt having a 1:1 impedance designed for 50Ω can be installed at the feed point for improved performance, if desired.
